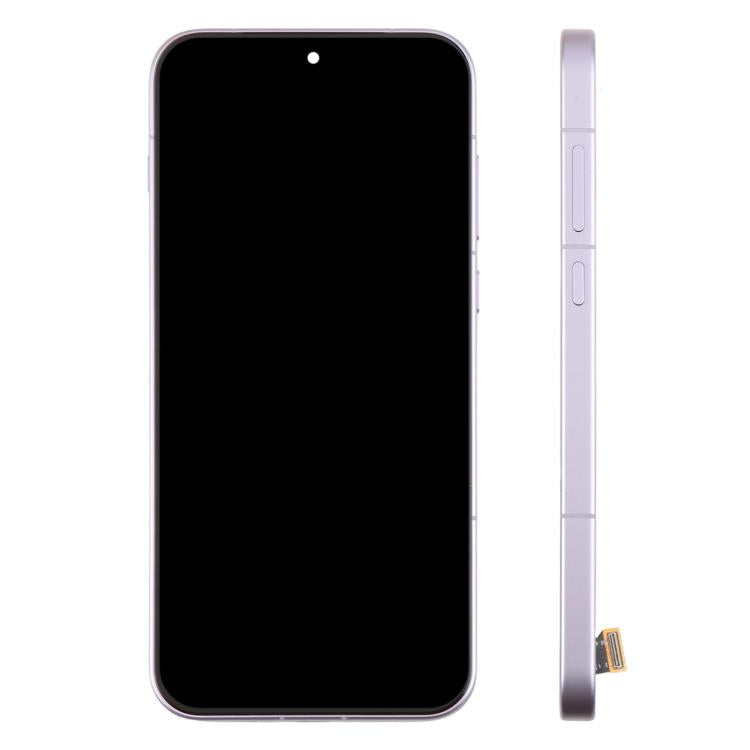

Original LCD Screen with Digitizer and Frame for OnePlus 15

Did both the screen and mid-frame of your OnePlus 15 get so badly damaged that a panel swap alone isn't enough? With this original panel including frame you bring everything back to factory state in one shot. The panel sits glued onto the correct frame, so you don't have to rebuild the housing first.

Specifications

• Compatible models: OnePlus 15 (CPH2747 / CPH2745 / PLK110 / CPH2749)

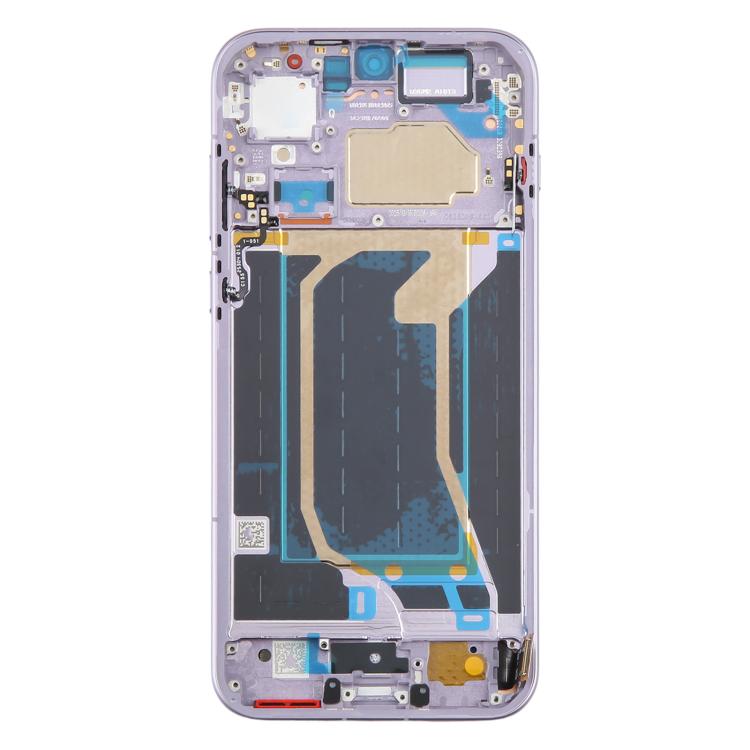

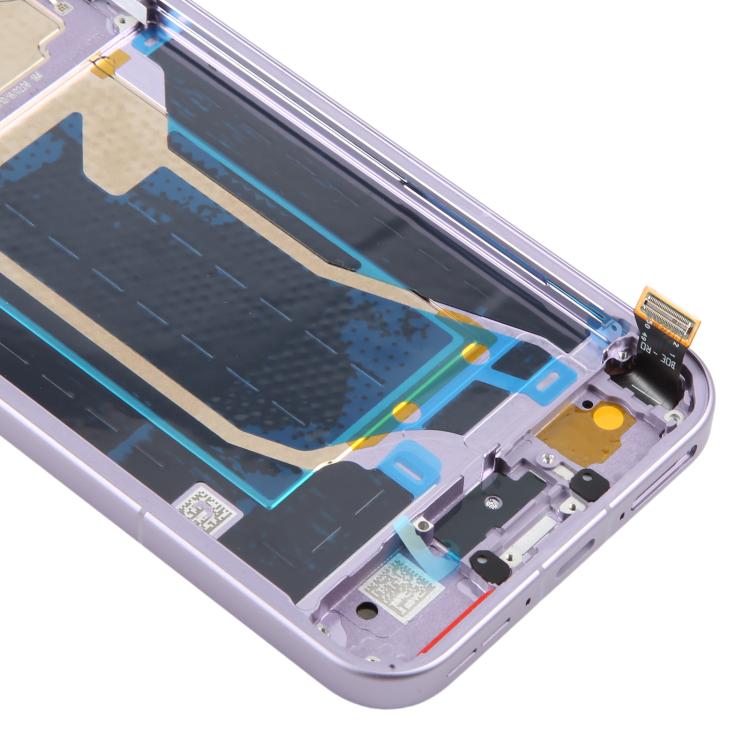

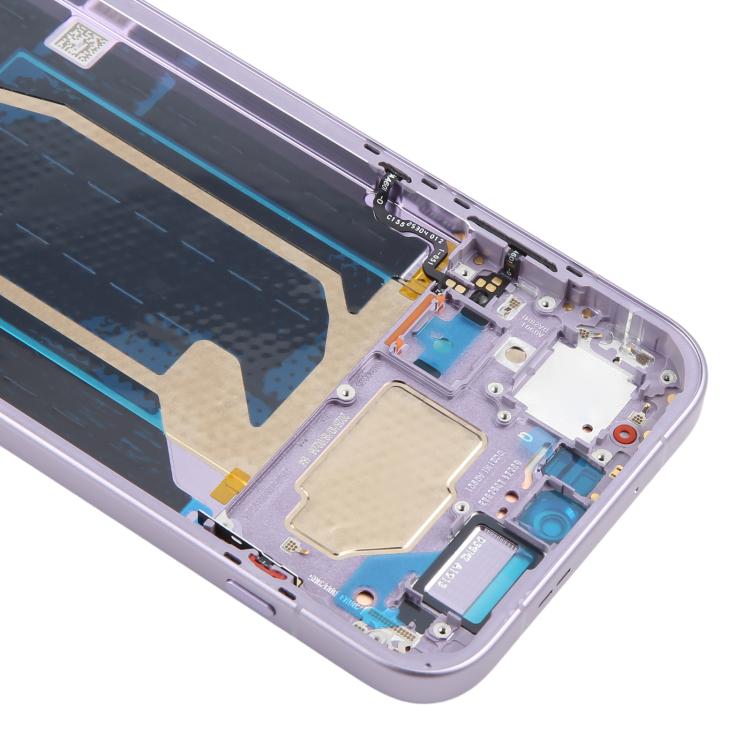

• Type: screen with digitizer and integrated frame
• Panel: original OnePlus AMOLED
• 120Hz refresh rate supported
• Pre-installed flex cables
• Frame comes with screen adhesive edge
• No software pairing required

Symptoms of a faulty part

• Screen and frame both badly damaged after a drop
• Frame bent so the panel no longer sits flat
• Touch unresponsive or ghost-touching
• Vertical or horizontal lines on the panel
• Burn-in or dead pixels in a strip

Installation

Difficulty: 🔴 Hard (screen/soldering)
Estimated time: 90 min

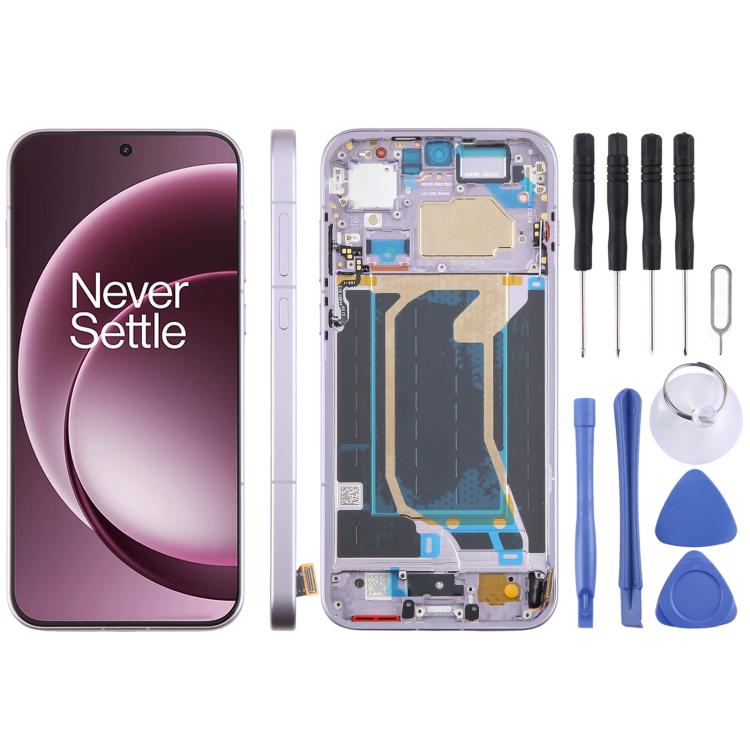

Tools needed: Phillips PH00, plastic spudger, suction cup, tweezers and a heat gun or iOpener.

Frequently asked questions

Don't I have to transfer the old frame first?
No. The panel is glued onto the correct frame; you only have to transfer the motherboard and battery.

Does 120Hz work after the swap?
Yes. The panel supports the full 120Hz refresh of original, OxygenOS handles it automatically.

Does this fit all four SKUs?
Yes. CPH2747, CPH2745, PLK110 and CPH2749 are regional variants of the OnePlus 15 and share the same panel-frame.
