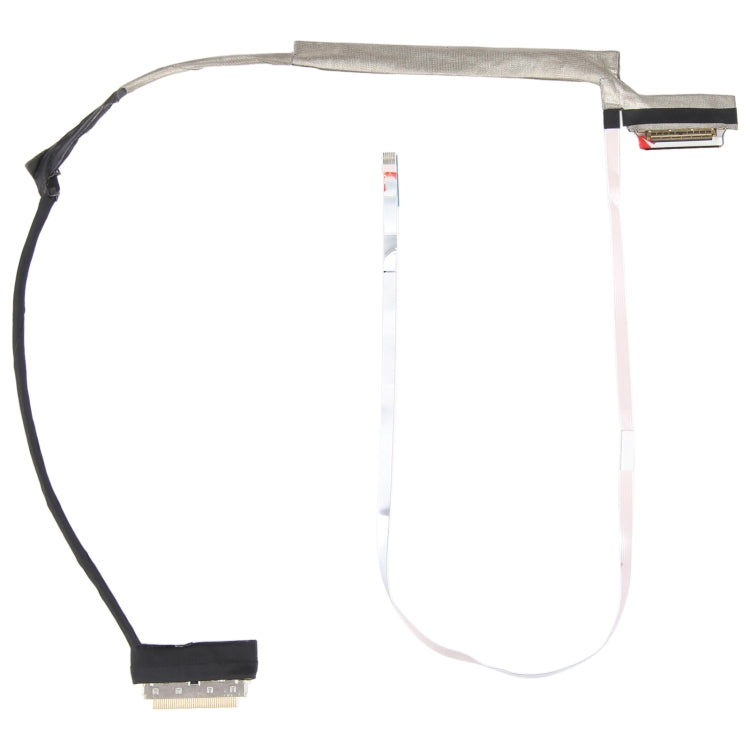

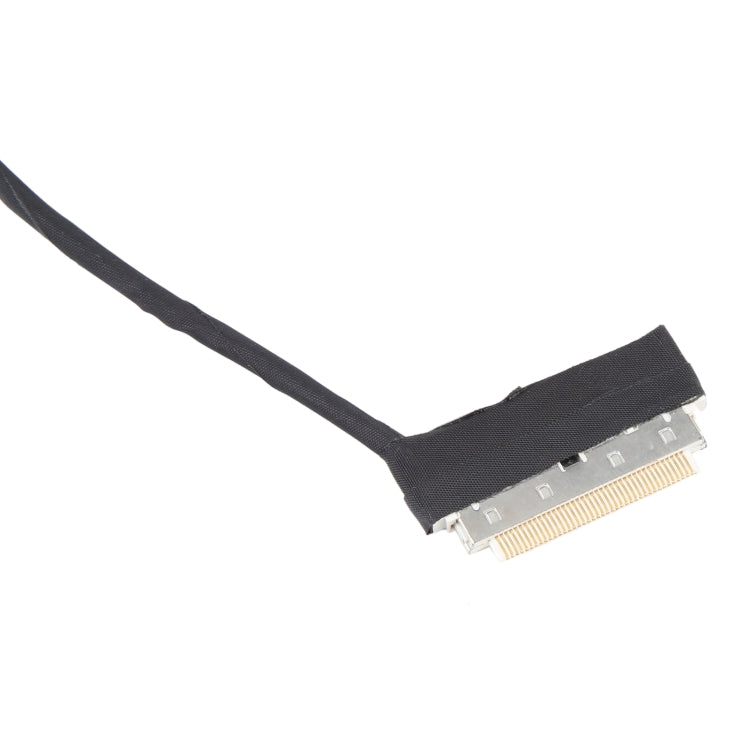

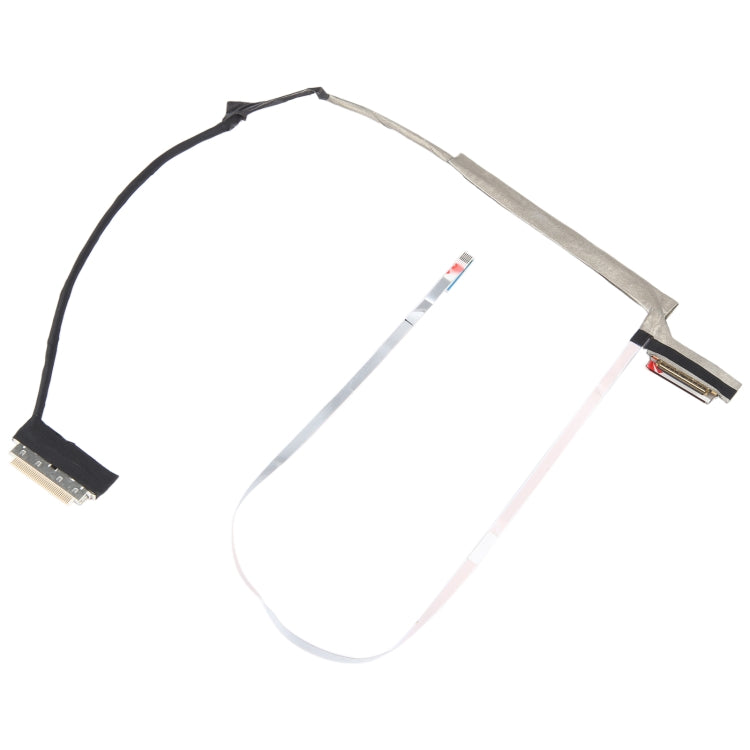

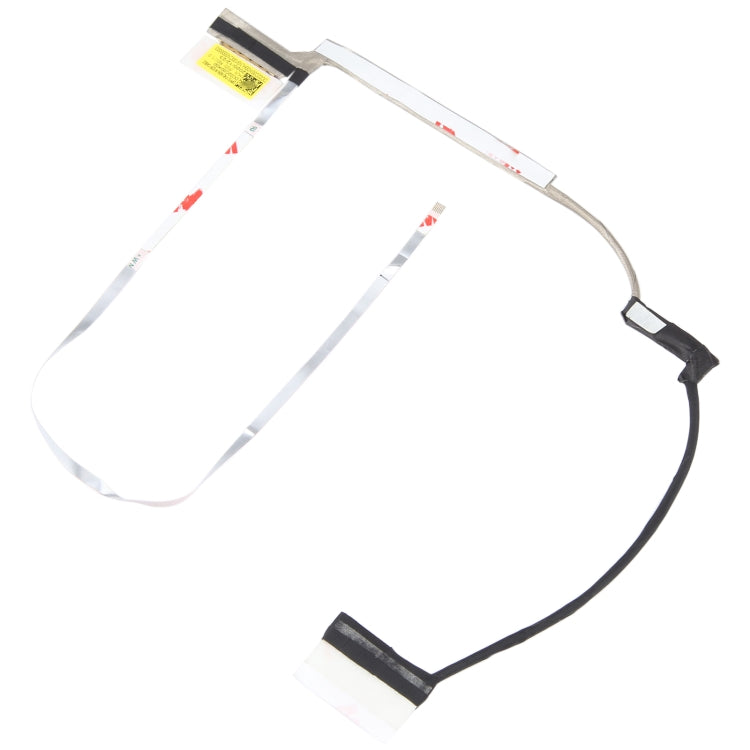

LCD cable 30-pin L20361-001 for HP Pavilion Gaming 15-CX

Does the screen on your HP Pavilion Gaming 15-CX (2018-2019) flicker or cut out when you open and close the laptop? The LCD flex cable is a weak link — on this model the wires break at the hinge. This 30-pin cable with part number L20361-001 / DC02C00I200 / DC02C00IK00 replaces the original.

Specifications

• Pin count: 30-pin eDP
• Part: L20361-001 / DC02C00I200 / DC02C00IK00
• Fits HP Pavilion Gaming 15-CX
• For non-touch panels
• Same length as OEM
• Compatible with original BIOS
• Includes adhesive/film where applicable

Symptoms of a faulty part

• Image flickers when hinge moves
• Vertical lines or colour distortion
• Screen drops out at certain lid angles
• No image while LCD is fine
• Wires visible through wear

Installation

🟡 Medium · about 40 minutes · Phillips PH0 + plastic spudger. Open the bezel, pull the old cable out of the panel connector, route the new cable through the hinge and reconnect to the mainboard.

Frequently asked questions

Will this cable work with the touchscreen version of the HP Pavilion Gaming 15-CX?

No, touchscreen variants use a wider cable with more wires. Non-touch only.

How do I know it's really the cable?

Slowly open and close the lid. If the image changes, the cable is the likely cause.

Do I need new adhesive?

Not always. The original tape usually still sticks; otherwise add a strip of double-sided tape.
