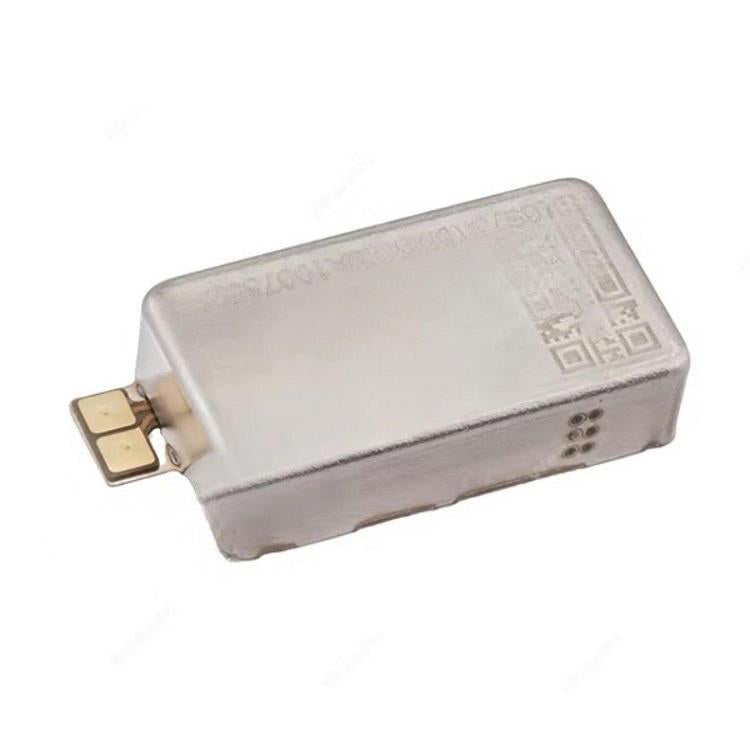

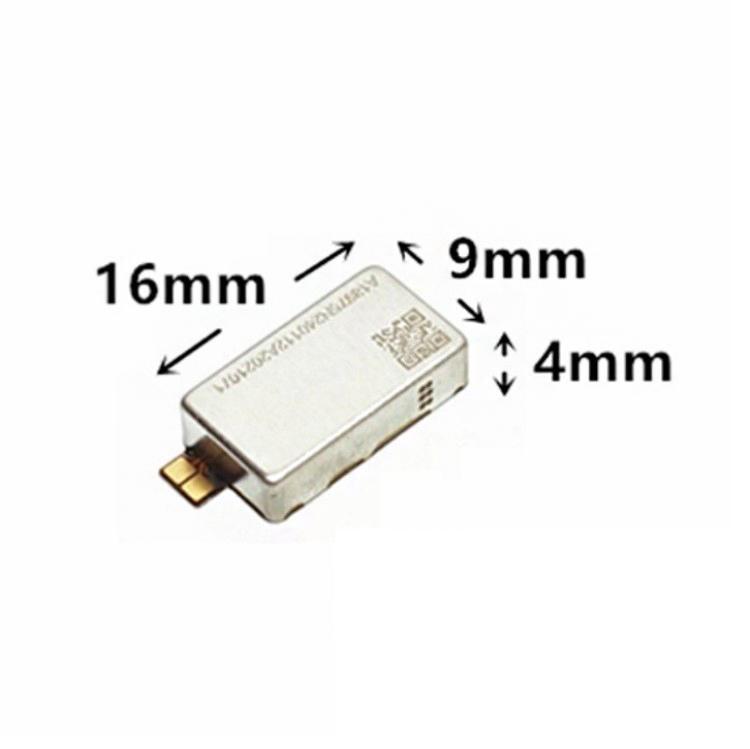

Vibration motor OnePlus 11

Does your OnePlus 11 (2023) vibrate weakly, harshly or not at all? This vibration motor swaps the entire vibration motor. Pop out and stick the new one in place.

Specifications

• Linear (LRA) or ERM vibration motor — identical to original
• ZIF connector on the motherboard
• Includes double-sided foam sticker
• Replace when haptics weaken or go silent
• 1-to-1 replacement part
• Compatible: OnePlus 11

Symptoms of a faulty part

• Phone no longer vibrates for calls or alerts
• Typing gives no haptic feedback
• Vibration sounds raspy or rattles
• Buzz sometimes keeps going after a notification

Installation

🟡 Difficulty: Medium. Time: about 25 minutes. Tools: Phillips screwdriver, Y000 bit, plastic spudger, suction cup and pick. Open the back, disconnect the battery, remove the old part and route the new one along exactly the same path before closing up.

Frequently asked questions

Does this part fit other OnePlus models?
No. It is specific to the OnePlus 11. Other models have different dimensions, connectors or pinout.

Do I need special software or calibration?
No. The part works straight away — no flash, no calibration. The phone picks it up on the next boot.

What's the minimum toolset needed?
A Phillips screwdriver, a Y000 bit, a plastic spudger and a suction cup are enough. No soldering.
